KF-短颈承插焊式法兰
2016-5-3
产品介绍：

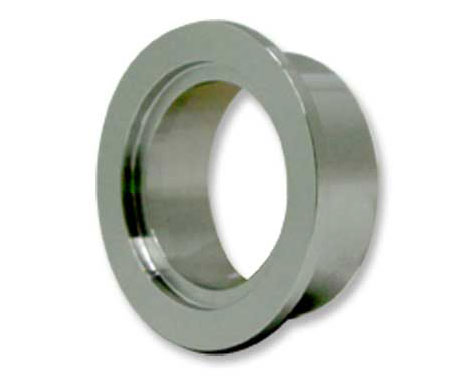

KF 短颈承插焊式法兰
KF SOCKET WELD FLANGES, SHORT
材质：不锈钢304/L
|
Catalogue PN |
Size |
A |
B |
C |
D |
E |
|
KF-SWS-10 |
KF10 |
30.00 |
12.20 |
12.90 |
16.00 |
6.35 |
|
KF-SWS-16 |
KF16 |
30.00 |
17.20 |
19.30 |
22.40 |
6.35 |
|
KF-SWS-25 |
KF25 |
40.00 |
26.20 |
25.70 |
28.80 |
6.35 |
|
KF-SWS-40 |
KF40 |
55.00 |
41.20 |
38.40 |
41.50 |
6.35 |
|
KF-SWS-50 |
KF50 |
75.00 |
52.20 |
51.10 |
54.20 |
6.35 |
