In--Axis-插板阀
2016-4-27

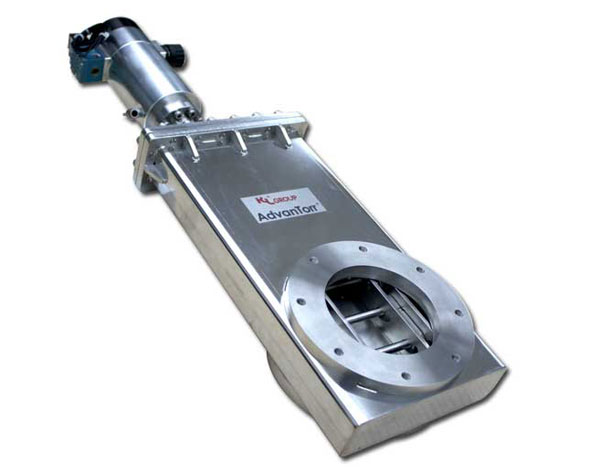

Pneumatic In-Axis Gate Valves, UHV, CF Flange
|
Catalog PN |
Tube OD |
A |
B |
C |
D |
E |
F |
G |
H |
I |
|
AGP-UHV-CF600 |
4" |
152 |
98 |
130 |
M8 |
589 |
170 |
224 |
85 |
287 |
|
AGP-UHV-CF800 |
6" |
202 |
105 |
181 |
M8 |
746 |
234 |
251 |
117 |
387 |
|
AGP-UHV-CF1000 |
8" |
253 |
114 |
232 |
M8 |
948 |
316 |
269 |
158 |
521 |
|
AGP-UHV-CF1200 |
10" |
304 |
140 |
284 |
M8 |
1120 |
368 |
333 |
184 |
611 |
Pneumatic In-Axis Gate Valves, HV, CF Flange
|
Catalog PN |
Tube OD |
A |
B |
C |
D |
E |
F |
G |
H |
I |
|
AGP-HV-CF600 |
4" |
152 |
98 |
130 |
M8 |
589 |
170 |
224 |
85 |
287 |
|
AGP-HV-CF800 |
6" |
202 |
105 |
181 |
M8 |
746 |
234 |
251 |
117 |
387 |
|
AGP-HV-CF1000 |
8" |
253 |
114 |
232 |
M8 |
948 |
316 |
269 |
158 |
521 |
|
AGP-HV-CF1200 |
10" |
304 |
140 |
284 |
M8 |
1120 |
368 |
333 |
184 |
611 |
Pneumatic In-Axis Gate Valves, HV, ISO-F Flange
|
Catalog PN |
Tube OD |
A |
B |
C |
D |
E |
F |
G |
H |
I |
|
AGP-HV-ISOF100T |
4" |
152 |
70 |
145 |
M8 |
589 |
170 |
224 |
85 |
287 |
|
AGP-HV-ISOF160T |
6" |
202 |
80 |
200 |
M10 |
746 |
234 |
251 |
117 |
387 |
|
AGP-HV-ISOF200T |
8" |
253 |
80 |
260 |
M10 |
948 |
316 |
269 |
158 |
521 |
|
AGP-HV-ISOF250T |
10" |
304 |
100 |
310 |
M10 |
1120 |
368 |
333 |
184 |
611 |
|
AGP-HV-ISOF320T |
12" |
336 |
120 |
395 |
M12 |
1339 |
450 |
373 |
225 |
750 |
