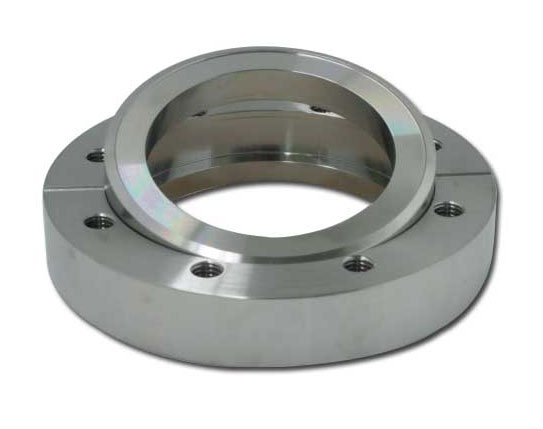

CF 通径法兰-旋转式
CF BORED FLNAGES, ROTATABLE
材质：304/L
提供攻牙孔与钻孔规格
|
Catalogue PN |
Type |
Flange-Tube |
A |
B |
C |
D |
PCD |
Bolt |
Diameter / |
|
CF-BF-133x050R |
Thru Holes |
CF1.33"-0.50" |
33.70 |
12.83 |
12.83 |
7.60 |
26.97 |
6 |
4.37 |
|
CF-BF-133x050RT |
Tapped |
CF1.33"-0.50" |
33.70 |
12.83 |
12.83 |
7.60 |
26.97 |
6 |
8-32 |
|
CF-BF-133x050RTM |
Tapped(M) |
CF1.33"-0.50" |
33.70 |
12.83 |
12.83 |
7.60 |
26.97 |
6 |
M4 |
|
CF-BF-133x075R |
Thru Holes |
CF1.33"-0.75" |
33.70 |
16.00 |
19.30 |
7.60 |
26.97 |
6 |
4.37 |
|
CF-BF-133x075RT |
Tapped |
CF1.33"-0.75" |
33.70 |
16.00 |
19.30 |
7.60 |
26.97 |
6 |
8-32 |
|
CF-BF-133x075RTM |
Tapped(M) |
CF1.33"-0.75" |
33.70 |
16.00 |
19.30 |
7.60 |
26.97 |
6 |
M4 |
|
CF-BF-212x100R |
Thru Holes |
CF2.12"-1.00" |
53.80 |
23.90 |
25.91 |
11.90 |
41.28 |
4 |
6.73 |
|
CF-BF-212x100RT |
Tapped |
CF2.12"-1.00" |
53.80 |
23.90 |
25.91 |
11.90 |
41.28 |
4 |
1/4-28 |
|
CF-BF-212x100RTM |
Tapped(M) |
CF2.12"-1.00" |
53.80 |
23.90 |
25.91 |
11.90 |
41.28 |
4 |
M6 |
|
CF-BF-275x075R |
Thru Holes |
CF2.75"-0.75" |
69.30 |
16.00 |
19.30 |
12.70 |
58.72 |
6 |
6.73 |
|
CF-BF-275x075RT |
Tapped |
CF2.75"-0.75" |
69.30 |
16.00 |
19.30 |
12.70 |
58.72 |
6 |
1/4-28 |
|
CF-BF-275x075RTM |
Tapped(M) |
CF2.75"-0.75" |
69.30 |
16.00 |
19.30 |
12.70 |
58.72 |
6 |
M6 |
|
CF-BF-275x150R |
Thru Holes |
CF2.75"-1.50" |
69.30 |
36.60 |
38.61 |
12.70 |
58.72 |
6 |
6.73 |
|
CF-BF-275x150RT |
Tapped |
CF2.75"-1.50" |
69.30 |
36.60 |
38.61 |
12.70 |
58.72 |
6 |
1/4-28 |
|
CF-BF-275x150RTM |
Tapped(M) |
CF2.75"-1.50" |
69.30 |
36.60 |
38.61 |
12.70 |
58.72 |
6 |
M6 |
|
CF-BF-338x200R |
Thru Holes |
CF3.38"-2.00" |
85.30 |
49.30 |
51.31 |
17.40 |
72.39 |
8 |
8.43 |
|
CF-BF-338x200RT |
Tapped |
CF3.38"-2.00" |
85.30 |
49.30 |
51.31 |
17.40 |
72.39 |
8 |
5/16-24 |
|
CF-BF-338x200RTM |
Tapped(M) |
CF3.38"-2.00" |
85.30 |
49.30 |
51.31 |
17.40 |
72.39 |
8 |
M8 |
|
CF-BF-450x250R |
Thru Holes |
CF4.50"-2.50" |
113.50 |
62.00 |
64.01 |
19.10 |
92.15 |
8 |
8.43 |
|
CF-BF-450x250RT |
Tapped |
CF4.50"-2.50" |
113.50 |
62.00 |
64.01 |
19.10 |
92.15 |
8 |
5/16-24 |
|
CF-BF-450x250RTM |
Tapped(M) |
CF4.50"-2.50" |
113.50 |
62.00 |
64.01 |
19.10 |
92.15 |
8 |
M8 |
|
CF-BF-462x300R |
Thru Holes |
CF4.62"-3.00" |
117.00 |
74.70 |
76.71 |
20.60 |
102.36 |
10 |
8.43 |
|
CF-BF-462x300RT |
Tapped |
CF4.62"-3.00" |
117.00 |
74.70 |
76.71 |
20.60 |
102.36 |
10 |
5/16-24 |
|
CF-BF-462x300RTM |
Tapped(M) |
CF4.62"-3.00" |
117.00 |
74.70 |
76.71 |
20.60 |
102.36 |
10 |
M8 |
|
CF-BF-600x400R |
Thru Holes |
CF6.00"-4.00" |
151.60 |
99.60 |
102.11 |
21.30 |
130.25 |
16 |
8.43 |
