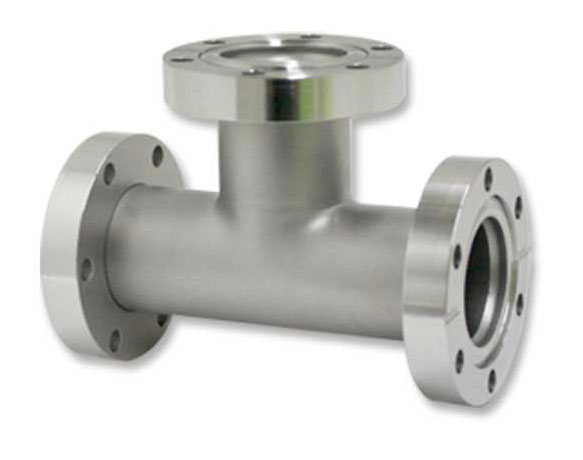

CF-异径三通

Catalogue PN

Flange Size

A

B

CF-RT-275x133

CF2.75”/1.33”

62.50

47.50

CF-RT-275x212

CF2.75”/2.12”

62.50

58.20

CF-RT-338x133

CF3.38”/1.33”

81.80

54.10

CF-RT-338x275

CF3.38”/2.75”

81.80

68.80

CF-RT-450x275

CF4.50”/2.75”

85.90

75.20

CF-RT-450x338

CF4.50”/3.38”

85.90

88.40

CF-RT-462x338

CF4.62”/3.38”

89.70

94.70

CF-RT-462x450

CF4.62”/4.50”

89.70

92.20

CF-RT-600x275

CF6.00”/2.75”

109.70

94.20

CF-RT-600x338

CF6.00”/3.38”

109.70

107.40

CF-RT-600x450

CF6.00”/4.50”

109.70

104.90

CF-RT-600x462

CF6.00”/4.62”

109.70

102.40
