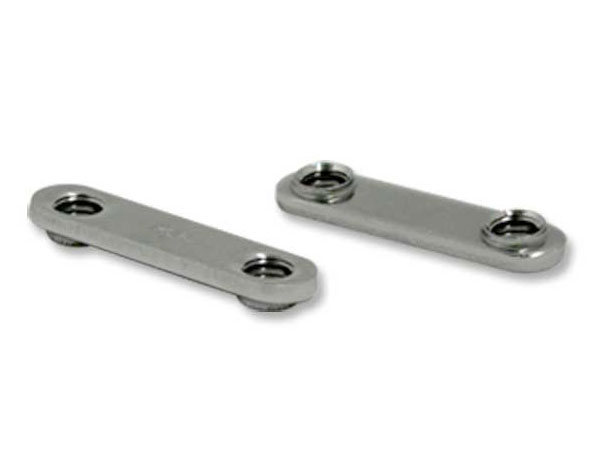

连接片-公制牙

Catalogue PN

Flange Size

Diagram

A

B

C

D

E

ØF

CF-PN-133M

CF1.33”

A

20.30

7.62

13.46

3.20

5.35

M4xP0.7

CF-PN-275M

CF2.75”

A

41.16

12.70

29.46

5.10

6.10

M6xP1.0

CF-PN-338M

CF3.38”

B

44.45

12.70

27.69

5.30

-

M8xP1.25

CF-PN-450M

CF4.50”

B

51.56

12.70

35.30

5.30

-

M8xP1.25

CF-PN-462M

CF4.62”

B

45.80

12.70

31.60

5.30

-

M8xP1.25

CF-PN-600M

CF6.00”

B

41.65

12.70

25.40

5.30

-

M8xP1.25

CF-PN-800M

CF8.00”

B

44.45

12.70

28.45

5.30

-

M8xP1.25

CF-PN-1000M

CF10.00”

B

44.45

12.70

30.23

5.30

-

M8xP1.25
