CF法兰&管件
产品介绍：

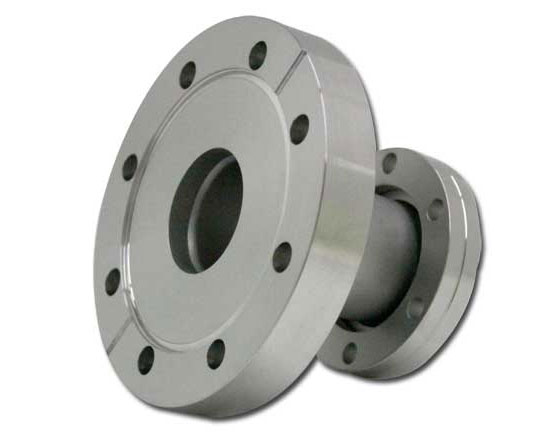

CF 直管大小头
CF FLANGE STRAIGHT REDUCERS
材质：304/L
管表面处理：喷砂
|
Catalogue PN |
Flange Size |
A |
B |
C |
|
CF-SR-275x133 |
CF2.75”/1.33” |
2.75” |
1.33” |
45.00 |
|
CF-SR-450x133 |
CF4.50”/1.33” |
4.50” |
1.33” |
70.00 |
|
CF-SR-450x275 |
CF4.50”/2.75” |
4.50” |
2.75” |
75.00 |
|
CF-SR-600x275 |
CF6.00”/2.75” |
6.00” |
2.75” |
127.00 |
|
CF-SR-600x450 |
CF6.00”/4.50” |
6.00” |
4.50” |
95.00 |
|
CF-SR-800x275 |
CF8.00”/2.75” |
8.00” |
2.75” |
127.00 |
|
CF-SR-800x450 |
CF8.00”/4.50” |
8.00” |
4.50” |
127.00 |
|
CF-SR-800x600 |
CF8.00”/6.00” |
8.00” |
6.00” |
127.00 |
|
CF-SR-1000x275 |
CF10.00”/2.75” |
10.00” |
2.75” |
127.00 |
|
CF-SR-1000x450 |
CF10.00”/4.50” |
10.00” |
4.50” |
127.00 |
|
CF-SR-1000x600 |
CF10.00”/6.00” |
10.00” |
6.00” |
127.00 |
|
CF-SR-1000x800 |
CF10.00”/8.00” |
10.00” |
8.00” |
127.00 |
