CF法兰&管件
产品介绍：

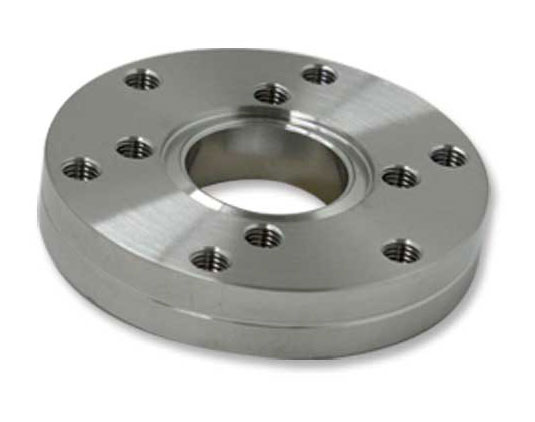

CF 无直部大小头
CF ZERO LENGTH REDUCERS
材质：304/L
|
Catalogue PN |
Large Flange |
Small Flange |
Tube Size |
B |
D |
|
CF-ZL-212x133N |
CF2.12" Tapped holes |
CF1.33" Tapped holes |
3/4" |
15.75 |
11.90 |
|
CF-ZL-275x133Z |
CF2.75" Thru holes |
CF1.33" Tapped holes |
3/4" |
15.75 |
12.70 |
|
CF-ZL-275x212N |
CF2.75" Tapped holes |
CF2.12" Tapped holes |
1.0" |
25.40 |
12.70 |
|
CF-ZL-338x133Z |
CF3.38" Thru holes |
CF1.33" Tapped holes |
3/4" |
15.75 |
16.00 |
|
CF-ZL-338x212Z |
CF3.38" Thru holes |
CF2.12" Tapped holes |
1.0" |
25.40 |
16.00 |
|
CF-ZL-338x275N |
CF3.38" Tapped holes |
CF2.75" Tapped holes |
1.5" |
38.10 |
16.00 |
|
CF-ZL-450x133Z |
CF4.50" Thru holes |
CF1.33" Tapped holes |
3/4" |
15.75 |
17.40 |
|
CF-ZL-450x212Z |
CF4.50" Thru holes |
CF2.12" Tapped holes |
1.0" |
25.40 |
17.40 |
|
CF-ZL-450x275Z |
CF4.50" Thru holes |
CF2.75" Tapped holes |
1.5" |
38.10 |
17.40 |
|
CF-ZL-450x338N |
CF4.50" Tapped holes |
CF3.38" Tapped holes |
2.0" |
50.80 |
17.40 |
|
CF-ZL-462x133Z |
CF4.62" Thru holes |
CF1.33" Tapped holes |
3/4" |
15.75 |
19.10 |
|
CF-ZL-462x212Z |
CF4.62" Thru holes |
CF2.12" Tapped holes |
1.0" |
25.40 |
19.10 |
|
CF-ZL-462x275Z |
CF4.62" Thru holes |
CF2.75" Tapped holes |
1.5" |
38.10 |
19.10 |
|
CF-ZL-462x338Z |
CF4.62" Thru holes |
CF3.38" Tapped holes |
2.0" |
50.80 |
19.10 |
|
CF-ZL-600x133Z |
CF6.00" Thru holes |
CF1.33" Tapped holes |
3/4" |
15.75 |
19.80 |
|
CF-ZL-600x212Z |
CF6.00" Thru holes |
CF2.12" Tapped holes |
1.0" |
25.40 |
19.80 |
|
CF-ZL-600x275Z |
CF6.00" Thru holes |
CF2.75" Tapped holes |
1.5" |
38.10 |
19.80 |
|
CF-ZL-600x338Z |
CF6.00" Thru holes |
CF3.38" Tapped holes |
2.0" |
50.80 |
19.80 |
|
CF-ZL-600x450Z |
CF6.00" Thru holes |
CF4.50" Tapped holes |
2.5" |
63.50 |
19.80 |
|
CF-ZL-600x462N |
CF6.00" Tapped holes |
CF4.62" Tapped holes |
3.0" |
76.20 |
19.80 |
|
CF-ZL-675x275Z |
CF6.75" Thru holes |
CF2.75" Tapped holes |
1.5" |
38.10 |
21.34 |
|
CF-ZL-675x450Z |
CF6.75" Thru holes |
CF4.50" Tapped holes |
2.5" |
63.50 |
21.34 |
|
CF-ZL-800x133Z |
CF8.00" Thru holes |
CF1.33" Tapped holes |
3/4" |
15.75 |
22.35 |
|
CF-ZL-800x275Z |
CF8.00" Thru holes |
CF2.75" Tapped holes |
1.5" |
38.10 |
22.35 |
|
CF-ZL-800x450Z |
CF8.00" Thru holes |
CF4.50" Tapped holes |
2.5" |
63.50 |
22.35 |
|
CF-ZL-800x600Z |
CF8.00" Thru holes |
CF6.00" Tapped holes |
4.0" |
101.60 |
22.35 |
|
CF-ZL-1000x133Z |
CF10.00" Thru holes |
CF1.33" Tapped holes |
3/4" |
15.75 |
24.60 |
|
CF-ZL-1000x275Z |
CF10.00" Thru holes |
CF2.75" Tapped holes |
1.5" |
38.10 |
24.60 |
|
CF-ZL-1000x450Z |
CF10.00" Thru holes |
CF4.50" Tapped holes |
2.5" |
63.50 |
24.60 |
|
CF-ZL-1000x600Z |
CF10.00" Thru holes |
CF6.00" Tapped holes |
4.0" |
101.60 |
24.60 |
|
CF-ZL-1000x800Z |
CF10.00" Thru holes |
CF8.00" Tapped holes |
6.0" |
152.40 |
24.60 |
|
CF-ZL-1325x133Z |
CF13.25" Thru holes |
CF1.33" Tapped holes |
3/4" |
15.75 |
28.45 |
|
CF-ZL-1325x275Z |
CF13.25" Thru holes |
CF2.75" Tapped holes |
1.5" |
38.10 |
28.45 |
|
CF-ZL-1325x450Z |
CF13.25" Thru holes |
CF4.50" Tapped holes |
2.5" |
63.50 |
28.45 |
|
CF-ZL-1325x600Z |
CF13.25" Thru holes |
CF6.00" Tapped holes |
4.0" |
101.60 |
28.45 |
|
CF-ZL-1325x800Z |
CF13.25" Thru holes |
CF8.00" Tapped holes |
6.0" |
152.40 |
28.45 |
|
CF-ZL-1325x1000Z |
CF13.25" Thru holes |
CF10.00" Tapped holes |
8.0” |
203.20 |
28.45 |
