CF法兰&管件
产品介绍：

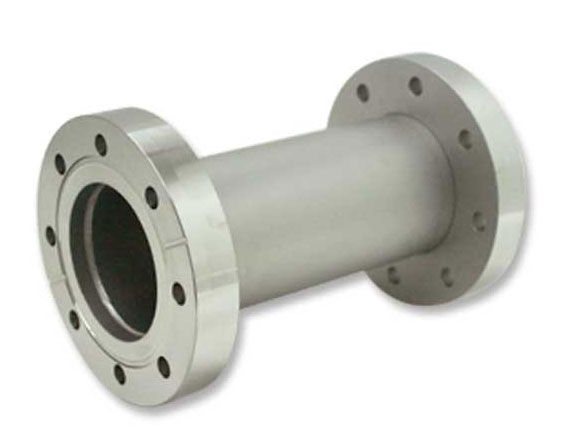

CF 短管
CF FLANGE FULL NIPPLES
材质：304/L
管表面处理：喷砂
|
Catalogue PN |
Flange Size |
A |
B |
C |
|
CF-FN-133 |
CF1.33” |
1.33” |
1.33” |
76.20 |
|
CF-FN-212 |
CF2.12” |
2.12” |
2.12” |
104.14 |
|
CF-FN-275 |
CF2.75” |
2.75” |
2.75” |
124.97 |
|
CF-FN-338 |
CF3.38” |
3.38” |
3.38” |
163.58 |
|
CF-FN-450 |
CF4.50” |
4.50” |
4.50” |
171.70 |
|
CF-FN-462 |
CF4.62” |
4.62” |
4.62” |
179.32 |
|
CF-FN-600 |
CF6.00” |
6.00” |
6.00” |
219.46 |
|
CF-FN-675 |
CF6.75” |
6.75” |
6.75” |
214.90 |
|
CF-FN-800 |
CF8.00” |
8.00” |
8.00” |
200.00 |
|
CF-FN-1000 |
CF10.00” |
10.00” |
10.00” |
406.40 |
