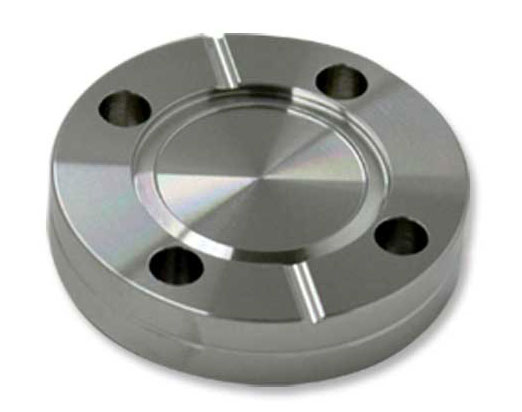

CF-盲法兰-固定式

Catalogue PN

Type

Flange Size

A
(mm)

D
(mm)

PCD
(mm)

Bolt
Holes

Diameter /
Thread
(mm)

CF-BL-133

Thru Holes

CF1.33"CF16

33.70

7.60

26.97

6

4.37

CF-BL-133T

Tapped

CF1.33"CF16

33.70

7.60

26.97

6

8-32

CF-BL-133TM

Tapped(M)

CF1.33"CF16

33.70

7.60

26.97

6

M4

CF-BL-212

Thru Holes

CF2.12"/CF25

53.80

11.90

41.28

4

6.73

CF-BL-212T

Tapped

CF2.12"/CF25

53.80

11.90

41.28

4

1/4-28

CF-BL-212TM

Tapped(M)

CF2.12"/CF25

53.80

11.90

41.28

4

M6

CF-BL-275

Thru Holes

CF2.75"/CF35

69.30

12.70

58.72

6

6.73

CF-BL-275T

Tapped

CF2.75"/CF35

69.30

12.70

58.72

6

1/4-28

CF-BL-275TM

Tapped(M)

CF2.75"/CF35

69.30

12.70

58.72

6

M6

CF-BL-338

Thru Holes

CF3.38"/CF50

85.30

16.00

72.39

8

8.43

CF-BL-338T

Tapped

CF3.38"/CF50

85.30

16.00

72.39

8

5/16-24

CF-BL-338TM

Tapped(M)

CF3.38"/CF50

85.30

16.00

72.39

8

M8

CF-BL-450

Thru Holes

CF4.50"/CF63

113.50

17.30

92.15

8

8.43

CF-BL-450T

Tapped

CF4.50"/CF63

113.50

17.30

92.15

8

5/16-24

CF-BL-450TM

Tapped(M)

CF4.50"/CF63

113.50

17.30

92.15

8

M8

CF-BL-462

Thru Holes

CF4.62"/CF80

117.00

19.10

102.36

10

8.43

CF-BL-462T

Tapped

CF4.62"/CF80

117.00

19.10

102.36

10

5/16-24

CF-BL-462TM

Tapped(M)

CF4.62"/CF80

117.00

19.10

102.36

10

M8

CF-BL-600

Thru Holes

CF6.00"/CF100

151.60

19.80

130.25

16

8.43

CF-BL-600T

Tapped

CF6.00"/CF100

151.60

19.80

130.25

16

5/16-24

CF-BL-600TM

Tapped(M)

CF6.00"/CF100

151.60

19.80

130.25

16

M8

CF-BL-667

Thru Holes

CF6.75"/CF130

170.69

21.30

151.61

18

8.43

CF-BL-667T

Tapped

CF6.75"/CF130

170.69

21.30

151.61

18

5/16-24

CF-BL-667TM

Tapped(M)

CF6.75"/CF130

170.69

21.30

151.61

18

M8

CF-BL-800

Thru Holes

CF8.00"/CF160

202.44

22.35

181.05

20

8.43

CF-BL-800T

Tapped

CF8.00"/CF160

202.44

22.35

181.05

20

5/16-24

CF-BL-800TM

Tapped(M)

CF8.00"/CF160

202.44

22.35

181.05

20

M8
