产品介绍：

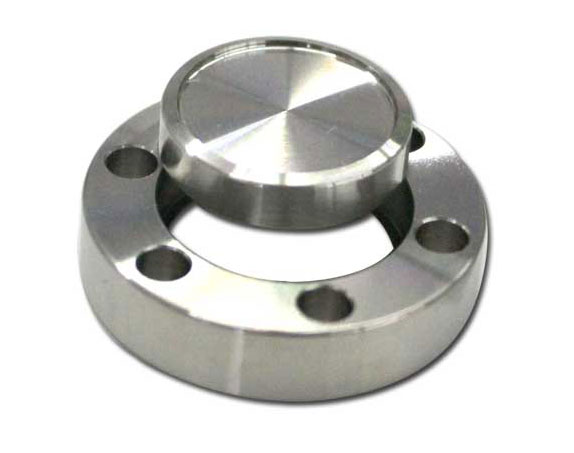

CF 盲法兰-旋转式
CF BLANKER, ROTATABLE
材质：304/L
提供攻牙孔与钻孔规格
|
Catalogue PN |
Type |
Flange Size |
A |
B |
D |
PCD |
Bolt |
Diameter / |
|
CF-BL-133R |
Thru Holes |
CF1.33"/CF16 |
33.70 |
19.41 |
7.60 |
26.97 |
6 |
4.37 |
|
CF-BL-133RT |
Tapped |
CF1.33"/CF16 |
33.70 |
19.41 |
7.60 |
26.97 |
6 |
8-32 |
|
CF-BL-133RTM |
Tapped(M) |
CF1.33"/CF16 |
33.70 |
19.41 |
7.60 |
26.97 |
6 |
M4 |
|
CF-BL-212R |
Thru Holes |
CF2.12"/CF25 |
53.80 |
27.94 |
11.90 |
41.28 |
4 |
6.73 |
|
CF-BL-212RT |
Tapped |
CF2.12"/CF25 |
53.80 |
27.94 |
11.90 |
41.28 |
4 |
1/4-28 |
|
CF-BL-212RTM |
Tapped(M) |
CF2.12"/CF25 |
53.80 |
27.94 |
11.90 |
41.28 |
4 |
M6 |
|
CF-BL-275R |
Thru Holes |
CF2.75"/CF35 |
69.30 |
48.31 |
12.70 |
58.72 |
6 |
6.73 |
|
CF-BL-275RT |
Tapped |
CF2.75"/CF35 |
69.30 |
48.31 |
12.70 |
58.72 |
6 |
1/4-28 |
|
CF-BL-275RTM |
Tapped(M) |
CF2.75"/CF35 |
69.30 |
48.31 |
12.70 |
58.72 |
6 |
M6 |
|
CF-BL-338R |
Thru Holes |
CF3.38"/CF50 |
85.30 |
54.50 |
17.40 |
72.39 |
8 |
8.43 |
|
CF-BL-338RT |
Tapped |
CF3.38"/CF50 |
85.30 |
54.50 |
17.40 |
72.39 |
8 |
5/16-24 |
|
CF-BL-338RTM |
Tapped(M) |
CF3.38"/CF50 |
85.30 |
54.50 |
17.40 |
72.39 |
8 |
M8 |
|
CF-BL-450R |
Thru Holes |
CF4.50"/CF63 |
113.50 |
72.39 |
19.10 |
92.15 |
8 |
8.43 |
|
CF-BL-450RT |
Tapped |
CF4.50"/CF63 |
113.50 |
72.39 |
19.10 |
92.15 |
8 |
5/16-24 |
|
CF-BL-450RTM |
Tapped(M) |
CF4.50"/CF63 |
113.50 |
72.39 |
19.10 |
92.15 |
8 |
M8 |
|
CF-BL-462R |
Thru Holes |
CF4.62"/CF80 |
117.00 |
79.71 |
20.60 |
102.36 |
10 |
8.43 |
|
CF-BL-462RT |
Tapped |
CF4.62"/CF80 |
117.00 |
79.71 |
20.60 |
102.36 |
10 |
5/16-24 |
|
CF-BL-462RTM |
Tapped(M) |
CF4.62"/CF80 |
117.00 |
79.71 |
20.60 |
102.36 |
10 |
M8 |
|
CF-BL-600R |
Thru Holes |
CF6.00"/CF100 |
151.60 |
106.17 |
21.30 |
130.25 |
16 |
8.43 |
|
CF-BL-600RT |
Tapped |
CF6.00"/CF100 |
151.60 |
106.17 |
21.30 |
130.25 |
16 |
5/16-24 |
|
CF-BL-600RTM |
Tapped(M) |
CF6.00"/CF100 |
151.60 |
106.17 |
21.30 |
130.25 |
16 |
M8 |
|
CF-BL-675R |
Thru Holes |
CF6.75"/CF130 |
170.69 |
129.50 |
21.30 |
151.61 |
18 |
8.43 |
|
CF-BL-675RT |
Tapped |
CF6.75"/CF130 |
170.69 |
129.50 |
21.30 |
151.61 |
18 |
5/16-24 |
|
CF-BL-675RTM |
Tapped(M) |
CF6.75"/CF130 |
170.69 |
129.50 |
21.30 |
151.61 |
18 |
M8 |
|
CF-BL-800R |
Thru Holes |
CF8.00"/CF160 |
202.44 |
155.70 |
23.90 |
181.05 |
20 |
8.4 |
