CF法兰&管件
产品介绍：

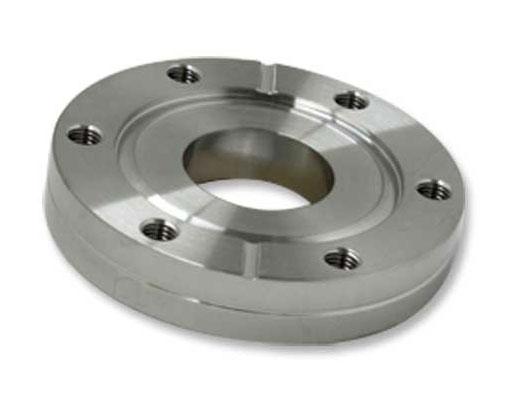

CF 双面法兰
CF DOUBLE FACE FLANGES
材质：304/L
通孔规格
|
Catalogue PN |
Type |
Flange-Tube |
A |
B |
D |
Bolt |
Diameter / |
|
CF-DF-133 |
Blank |
CF1.33” |
33.70 |
- |
7.60 |
6 |
4.37 |
|
CF-DF-133x075 |
Bored |
CF1.33” - 3/4” |
33.70 |
15.88 |
7.60 |
6 |
4.37 |
|
CF-DF-212 |
Blank |
CF2.12” |
53.80 |
- |
11.90 |
4 |
6.73 |
|
CF-DF-212x100 |
Bored |
CF2.12” - 1.0” |
53.80 |
25.65 |
11.90 |
4 |
6.73 |
|
CF-DF-275 |
Blank |
CF2.75” |
69.30 |
- |
12.70 |
6 |
6.73 |
|
CF-DF-275x150 |
Bored |
CF2.75” - 1.5” |
69.30 |
38.35 |
12.70 |
6 |
6.73 |
|
CF-DF-338 |
Blank |
CF3.38” |
85.30 |
- |
16.00 |
8 |
8.43 |
|
CF-DF-338x200 |
Bored |
CF3.38” - 2.0” |
85.30 |
51.05 |
16.00 |
8 |
8.43 |
|
CF-DF-450 |
Blank |
CF4.50” |
113.50 |
- |
17.40 |
8 |
8.43 |
|
CF-DF-450x250 |
Bored |
CF4.50” - 2.5” |
113.50 |
63.75 |
17.40 |
8 |
8.43 |
|
CF-DF-462 |
Blank |
CF4.62” |
117.00 |
- |
19.10 |
10 |
8.43 |
|
CF-DF-462x300 |
Bored |
CF4.62” - 3.0” |
117.00 |
79.71 |
19.10 |
10 |
8.43 |
|
CF-DF-600 |
Blank |
CF6.00” |
151.60 |
- |
19.80 |
16 |
8.43 |
|
CF-DF-600x400 |
Bored |
CF6.00” - 4.0” |
151.60 |
101.85 |
19.80 |
16 |
8.43 |
|
CF-DF-675 |
Blank |
CF6.75” |
170.69 |
- |
21.34 |
18 |
8.43 |
|
CF-DF-675x500 |
Bored |
CF6.75” - 5.0” |
170.69 |
127.25 |
21.34 |
18 |
8.43 |
|
CF-DF-800 |
Blank |
CF8.00” |
202.44 |
- |
22.35 |
20 |
8.43 |
|
CF-DF-800x600 |
Bored |
CF8.00” - 6.0” |
202.44 |
152.65 |
22.35 |
20 |
8.43 |
|
CF-DF-1000 |
Blank |
CF10.0” |
253.24 |
- |
24.60 |
24 |
8.43 |
|
CF-DF-1000x800 |
Bored |
CF10.0” - 8.0” |
253.24 |
203.45 |
24.60 |
24 |
8.43 |
|
CF-DF-1325 |
Blank |
CF13.25” |
335.79 |
- |
28.45 |
30 |
10.49 |
|
CF-DF-1325x1000 |
Bored |
CF13.25” - 10” |
335.79 |
254.50 |
28.45 |
30 |
10.49 |
